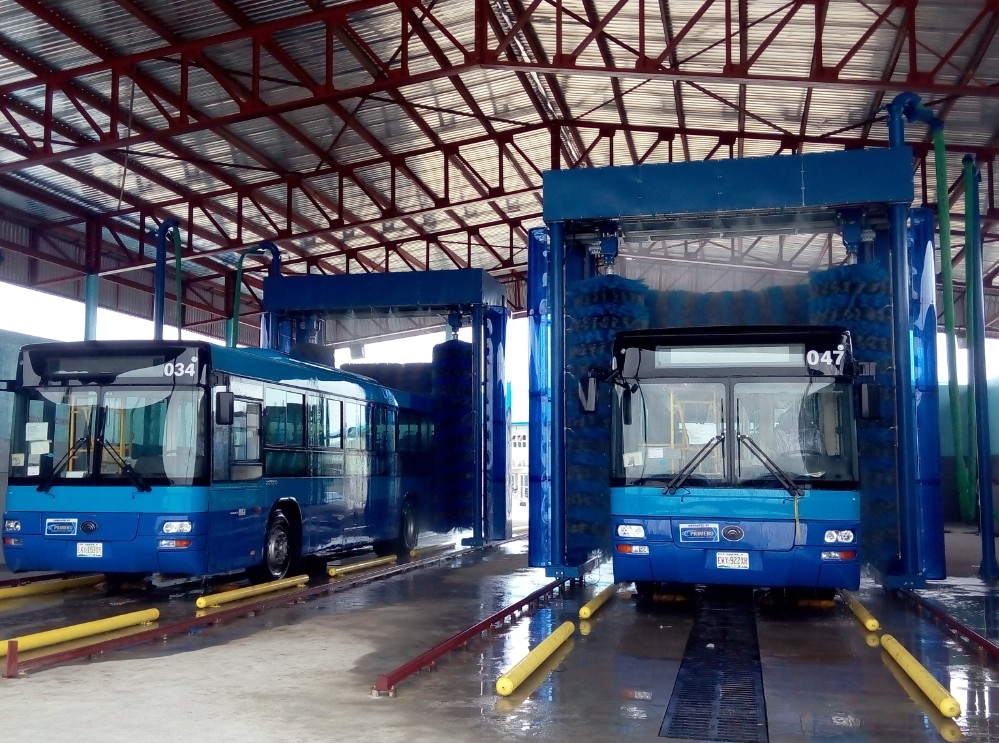

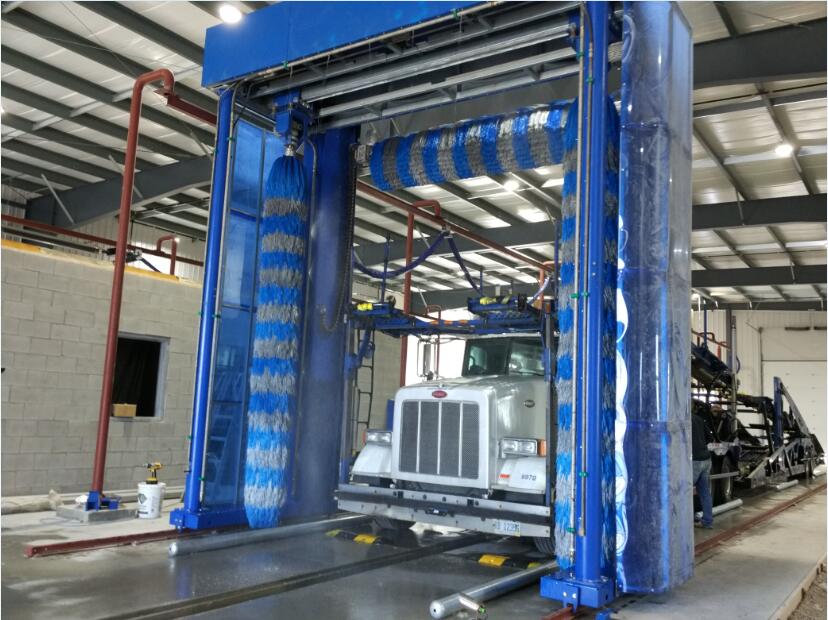

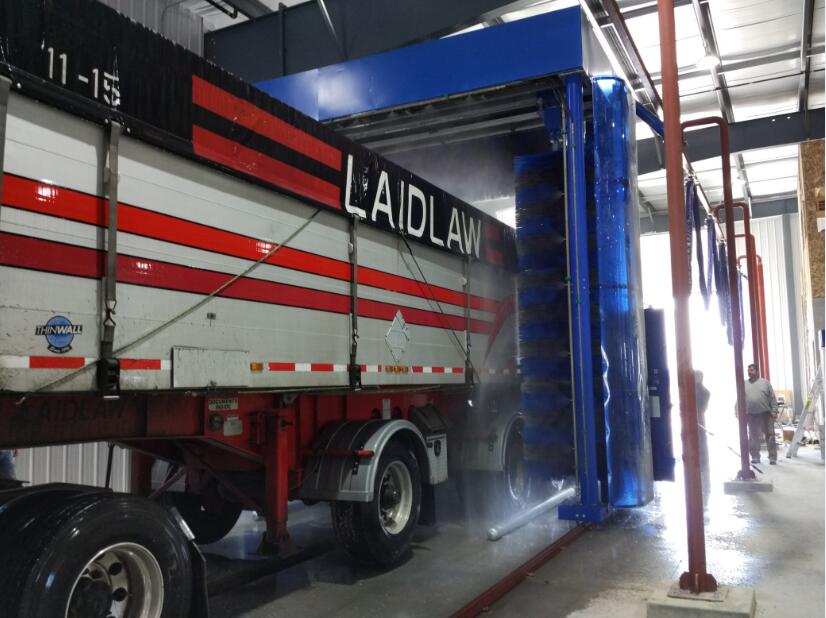

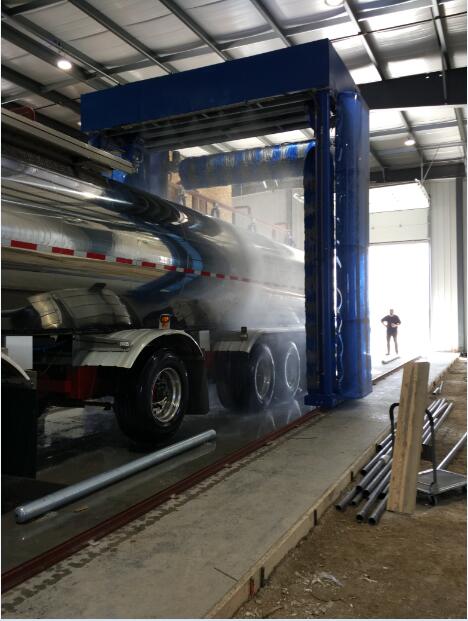

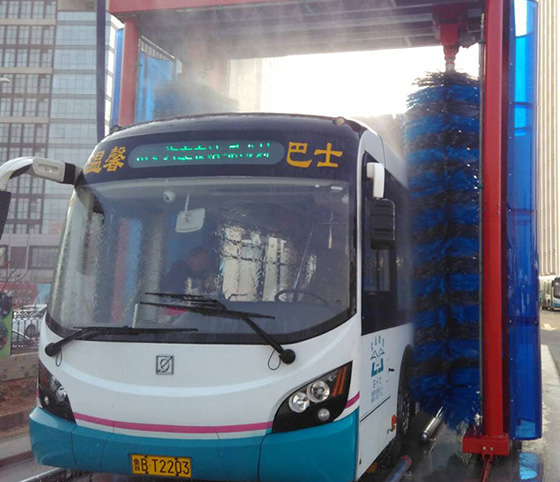

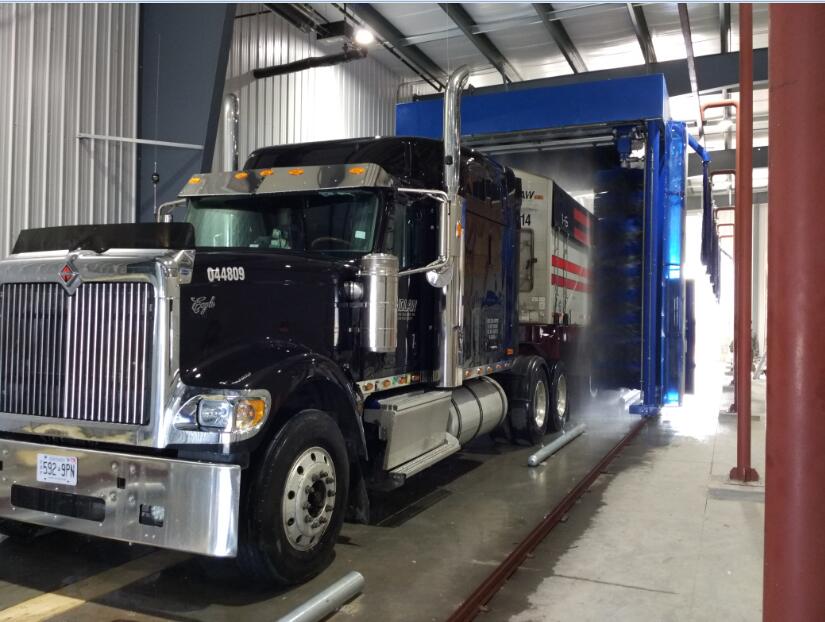

Bus/truck wash machine(CB-730)

Description:

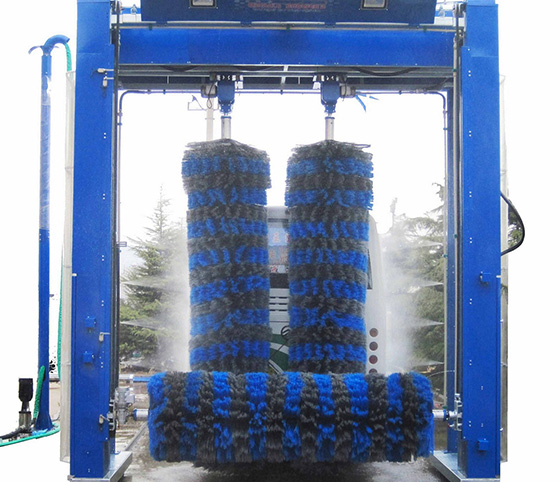

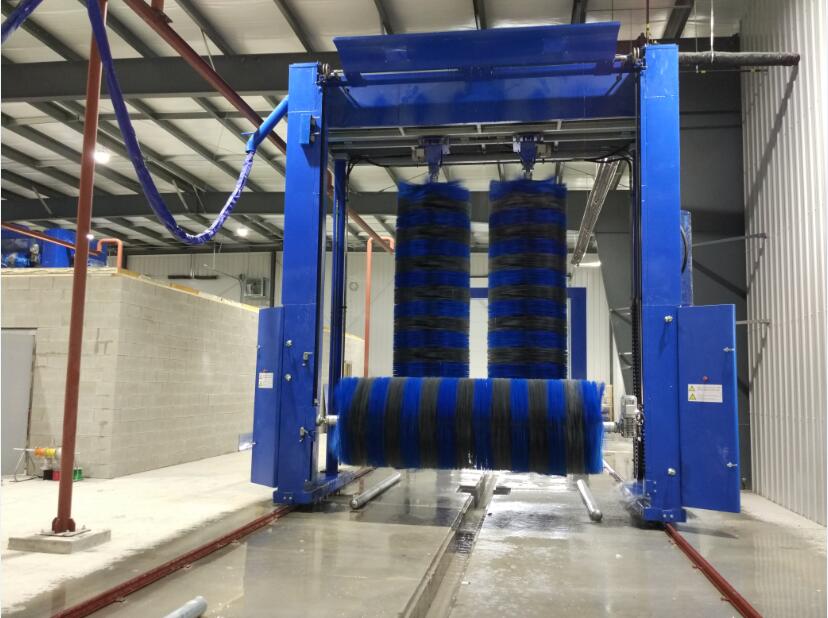

With  2 long brushes, 1 top brushes, total 3 nylon brushes.


Features:

1.With  2 long brushes, 1 top brushes, total 3 nylon brushes.

2.With pre-wash, shampoos, brushes wash, final rinse washing.

3.Bus roof, front, rear, both sides and chassis to wash.

4.PLC control systems&Touch screen pannel.

5. Trafic light on the machine to indicate the machine to readiness.

6.Proximity swith and photo sensors for activation of washing bus.


Equipment Parameter

Model

CB-730

(Reciprocating)

Machine dimension

3390x5466x7300mm

Assembling range

21000x6580mm

Available size for car

14000x2600x4200mm

Main voltage

380v 3phase 50HZ

Total power

8.86kw

Water supply

DN25mm water flow rate≥120L/min

Air pressure

0.75-0.9MPa Air flow rate≥0.6m³/min

Shampoo consumption

25-30ml/car

Washing time

4’/car

Car wash capacity

12-15cars/hour

Top brush

1 set

Big side brush

2 set


Equipment Advantages

1.With  2 long brushes, 1 top brushes, total 3 nylon brushes.

2.With pre-wash, shampoos, brushes wash, final rinse washing.

3.Bus roof, front, rear, both sides and chassis to wash.

4.PLC control systems&Touch screen pannel.

5. Trafic light on the machine to indicate the machine to readiness.

6.Proximity swith and photo sensors for activation of washing bus.

7.Water proof  IP56 Siti brand motor on brushes.

8.All bearing and components with high end quality.

9. Hop-dip galvanized steel frame keep the whole machine antirust.

10.With one-site installation and operate training for free.


Equipment Parameter
Light systemPLC control system made in JapanLiquid automatic mixing systemAutomatic Waxing spraying system

Nylon/foam brushHot-dip galvanized steel frameHigh pressure water systemBanner senor
