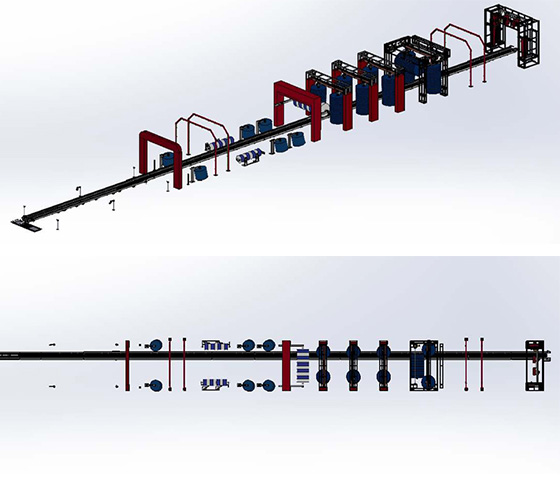

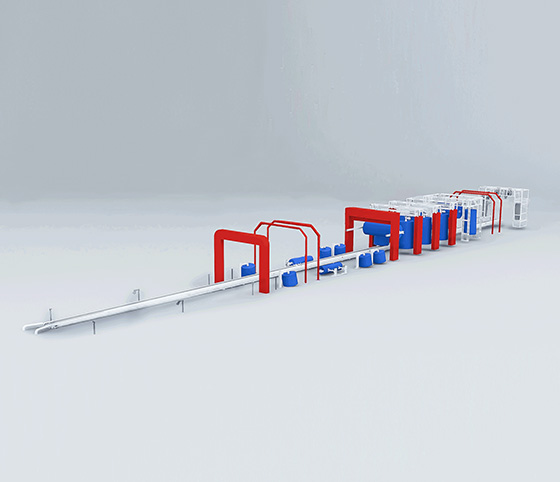

Continue tunnel wash mchine(CC-699)

Description:

This machine is customized for OEM customer of America.  Higher speed, can wash 120 cars per hour

Features:

1)  High pressure water pre-washing

2)  Shampoo(foams) sprinkling and wax washing systems.

3)  Three blowers dry the car body completely and precisely.

4)  PLC control system & humanized operate pannel.

5)  Intelligent avoidance system to wash all kinds of car types.

6)  Electroplated conveyor equipped with the corrector device.

7) Hop-dip galvanized steel frame keep the whole machine antirust.


Equipment Parameter

Model

CC-699

Machine dimension

33600x3800x3400mm

Conveyor length

33200mm

Assembling range

33600x3800mm

Available size for car

5300x2200x2000

Available car to wash

car/jeep/coach within 10 seats

Main voltage

380v 3phase 50HZ

Total power

40kw

Water supply

DN25mm water flow rate≥200L/min

Air pressure

0.75-0.9MPa Air flow rate≥0.6m³/min

Water/electricity consumption

180L/car  0.66kw/car

Shampoo consumption

10ml/car

Water Wax consumption

12ml/car

Washing time

1’12’’/car

Car wash capacity

40-50cars/hour

Top brush

1 set

Big side brush

4 set

Small side brush

4 set

Wheel brush

2 set

Dry brush

3 set

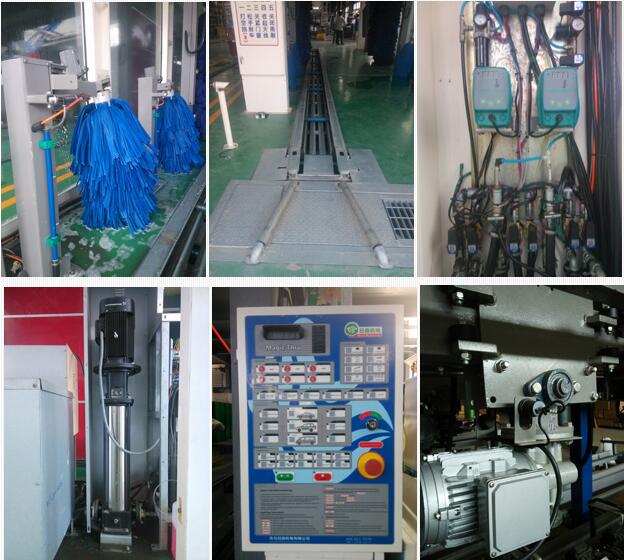

Equipment Advantages

1. High pressure water-washing and chassis sprinkling.

2. Shampoo(foams) sprinkling and wax washing system.

3. 13 brushes with foam material and lifelong warranty.

4. Blowing system dry the car body completely and precisely.

5. PLC control system & humanized operate pannel.

6. Intelligent avoidance system to wash all kinds of car types.

7. Main technology and machine design from Japan.

8. Electroplated conveyor equipped with the tire corrector device.

9. Hop-dip galvanized steel frame keep the whole machine antirust.

10. Motors, electrical apparatus, pumps are all imported from abroad.

11. No less than 15 years'using time.

12. With one-site installation and operate training for free.
